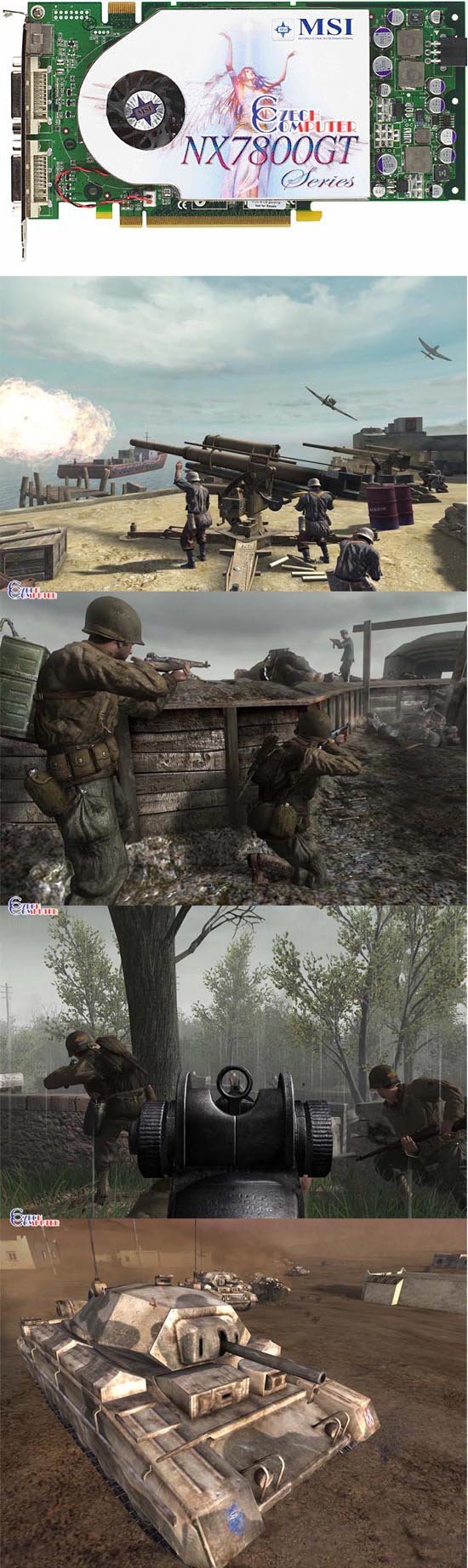

MicroStar NX7800GT-VT2D256E 256MB + COD2, PCI-E

Support Memory

256MB DDR3 memory

On-board Function

TV-out (S-Video connector)

Dual DVI Connector

VIVO + HDTV Connector

NOTE:

1. The supplied power cable must be attached to ensure the card worksproperly.

2. Always connect or disconnect the supplied power cable when the system power is off.

Geforce 7800GT Chipset Features

NVIDIA CineFX 4.0 Shading Architecture

• Vertex Shaders

• Pixel Shaders

• Next-Generation Texture Engine

• DirectX and S3TC texture compression

• Full 128-bit studio-quality floating point precision through the entire rendering pipeline with native hardware support for 32bpp, 64bpp, and 128bpp rendering modes

64-Bit Texture Filtering and Blending

• Full floating point support throughout entire pipeline

• Floating point filtering improves the quality of images in motion

• Floating point texturing drives new levels of clarity and image detail

• Floating point frame buffer blending gives detail to special effects like motion blur and explosions

NVIDIA Intellisample™ 4.0 Technology

• Advanced 16x anisotropic filtering (up to 128 Taps)

• Rotated-grid antialiasing removes jagged edges for incredible edge quality

• Support for advanced lossless compression algorithms for color, texture, and z-data at even higher resolutions and frame rates

• Fast z-clear

• Support for normal map compression

• New transparent super-sampling and transparent multi sampling Anti-Aliasing modes

NVIDIA UltraShadow™ II Technology

• Designed to enhance the performance of shadow-intensive games, like id Software's Doom 3

SLI Technology

• Patented hardware and software technology allows two GPUs to run in parallel to scale performance

• Scales performance on over 60 top PC games and applications

• NVIDIA nView® multi-display support for scalable performance across two displays

NVIDIA PureVideo™ Technology

• Three dedicated video engines

• H.264 hardware assist

• Industries most advanced video algorithms

• DVD and HDTV-ready MPEG-2 decoding up to 1920x1080p resolution

• Inverse 2:2 and 3:2 pure down

• Display gamma correction

• Microsoft® Video Mixing Renderer (VMR) supports multiple videowindows with full video quality and features in each window

Advanced Display Functionality

• Dual integrated 400MHz RAMDACs for display resolutions up to and including 2048x1536 at 85Hz

• Dual DVO ports for interfacing to external TMDS transmitters and external TV encoders

• Full NVIDIA nView multi-display technology capability

Advanced Engineering

• Designed for PCI Express x16

• Designed for high-speed GDDR3 memory

• Advanced thermal management and thermal monitoring delivers cooling at 24dB

NVIDIA Digital Vibrance Control™ (DVC) 3.0 Technology

• DVC color controls

• DVC image sharpening controls

Operating systems

• Windows XP/Windows XP 64-bit/Windows ME/Windows 2000

API Support

• Complete DirectX support, including the latest version of Microsoft DirectX 9.0 Shader Model 3.0

• Full OpenGL support, including OpenGL 2.0

Key Specifications

• 400MHz core clock speed

• 1GHz 256MB GDDR3 memory

• 256-bit memory interface

• 20 pixel pipes

• 7 Vertex Pipes

• NVIDIA CineFX 4.0 engine

• Intellisample 4.0 technology

• 64-bit FP texture filtering & blending

• NVIDIA SLI Ready

• DX 9.0 / SM 3.0 & OpenGL 2.0 supported

• All brand name & products are registered trademarks of their respective companies.

• All Chipset specs are derived from Nvidia data sheet. For your reference only.

System Requirements

To install the VGA card, your computer system needs to meet the following requirements:

• Intel Pentium III (and above), AMD K7 (and above) or compatible with PCI Express slot

• Minimum 128MB of system memory

• Installation software requires CD-ROM drive

• Interactive Program guide requires Internet connection for listing updates

• Power supply of 400 watt(550W is recommended for SLI mode) is highly recommended for system stability.
