QNAP TS-412

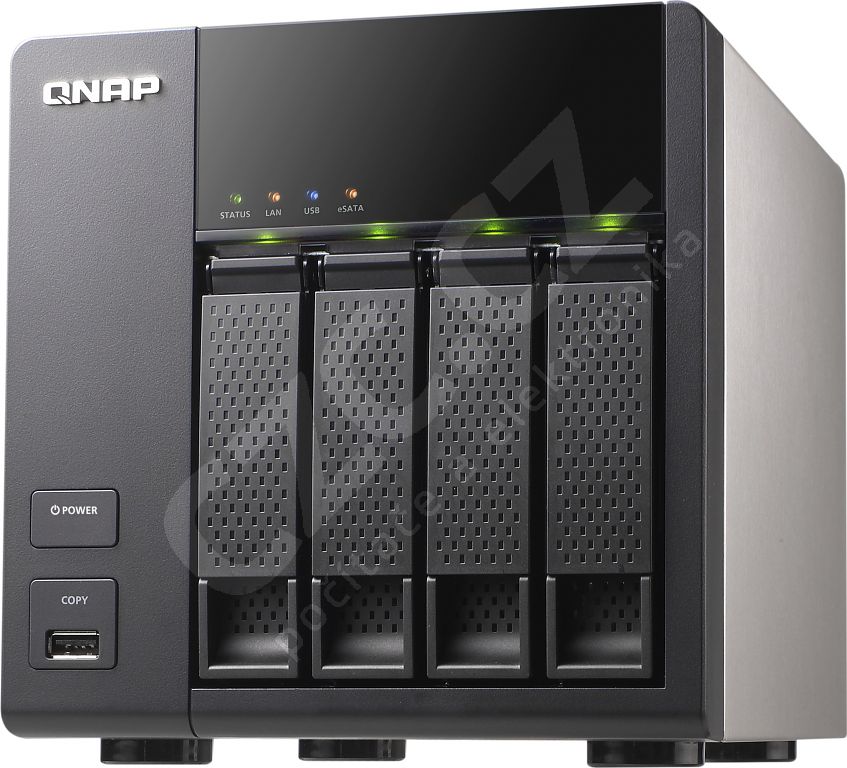

TS-412 Turbo NAS

Hardware Spec.

CPU Marvell 6281 1.2GHz

DRAM 256MB DDRII RAM

Flash Memory 16MB

Hard Disk Drive 4 x 3.5" or 2.5" SATA I/II hard disk drive (HDD)

NOTE:

The system is shipped without hard disk drives.

For the HDD compatibility list, please visit http://www.qnap.com/pro_compatibility.asp

HDD Tray 4 x hot-swappable tray

LAN Port 2 x Gigabit RJ-45 Ethernet port

LED Indicators Status, LAN, USB, eSATA, HDD 1, HDD 2, HDD 3, HDD 4

USB 4 x USB 2.0 port (Front: 1; Back: 3)

Supports USB printer, disk, pen drive, USB hub, and USB UPS, etc.

eSATA 2 x eSATA port (Back)

Buttons Power button, USB one-touch-backup button, reset button

Alarm Buzzer System warning

Form Factor Tower

Dimensions 177(H) x 180(W) x 235(D) mm

6.97(H) x 7.09(W) x 9.25(D) inch

Weight Net weight: 3 Kg (6.61 lbs)

Gross weight: 4.6 Kg (10.14 lbs)

Power Consumption (W) Sleep mode: 11W

In operation: 26W

(with 4 x 500GB HDD installed)

Temperature 0-40˚C/ 32-104°F

Relative Humidity 0-95% R.H.

Power Supply Input: 100-240V AC, 50/60Hz, Output: 12V DC, 10A, 120W

Secure Design K-Lock security slot for theft prevention

Fan 1 x quiet cooling fan (9 cm, 12V DC)

Software Spec.

Operating System

Embedded Linux

Supported Operating System

Microsoft Windows 2000, XP, Vista (32/ 64 bit), Windows 7 (32/ 64 bit), Windows Server 2003/ 2008

Apple Mac OS X

Linux & Unix

Supported Web Browsers

Internet Explorer 7 & 8 or later

Firefox 3 or later

Safari 3 & 4 or later

Google Chrome

Multilingual Support

Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Italian, Japanese, Korean, Norwegian, Polish, Russian, Spanish, Swedish, Turkish.

File System

Internal HDD: EXT3, EXT4

External HDD: EXT3, EXT4, NTFS, FAT32, HFS+

Networking

TCP/IP (IPv4 & IPv6: Dual Stack)

DHCP Client, DHCP Server

Protocols: CIFS/SMB, AFP (3.1), NFS, FTP, HTTP, HTTPS, Telnet, SSH, iSCSI and SNMP.

Network Service Discovery (UPnP, Bonjour)

USB Wi-Fi 802.11n Adapter Support (Optional Purchase)

Network File Sharing

CIFS/SMB (Plus DFS Support)

AFP

NFS

FTP

WebDAV

Backup Solution

USB One Touch Backup (Import/Export)

Apple Time Machine Support with Backup Management

Block-level Remote Replication

Work as Both Rsync Server & Client

Supports Encrypted Replication between QNAP NAS Servers

Back up to External Storage Device

Back up to Cloud Storage (Amazon S3 & ElephantDrive)

Security

IP Filter & Policy-based Automatic IP Blocking

Network Access Protection with Auto-blocking

Encrypted Access: HTTPS, FTP with SSL/TLS (Explicit), SSH/ SFTP (admin only), Encrypted Remote Replication (Rysnc over SSH)

CIFS Host Access Control for Shared Folders

Importable SSL Certificate

Instant Alert via E-mail, SMS

Disk Management

Single Disk, JBOD, RAID 0 / 1 / 5 / 5+Hot Spare / 6 / 10

Online RAID Capacity Expansion & Level Migration

Bad Block Scan & HDD S.M.A.R.T

RAID Recovery

Bitmap Support

Supports ISO Mounting (via Web File Manager)

iSCSI (IP SAN)

iSCSI Target

Multi-LUNs per Target

Up to 256 LUNs

Supports LUN Mapping & Masking

Supports SPC-3 Persistent Reservation

Supports MPIO & MC/S

Virtual Disk Drive (via iSCSI Initiator)

Stack Chaining Master

Max. Virtual Disk Drives: 8

Power Management

Scheduled Power on/off (Max 15 settings)

Automatic Power on after Power Recovery

Access Right Management

Max User Accounts: 4,096

Max Groups: 512

Max. Share Folder: 512

Batch Creating Users

Import/ Export User

User Quota Management

Subfolder Permissions Support

Windows AD Support

Domain Users Login via CIFS/SMB, AFP, FTP and Web File Manager

Supports NTLMv2 Authentication

Web Administration

AJAX-based User Interface

HTTP/HTTPS Connections

Alert Notification (Email & SMS)

Smart Fan Control

DDNS & MyCloudNAS Remote Access

SNMP (v2 & v3)

UPS Support with SNMP Management (USB)

Supports Network UPS

Resource Monitor

Network Recycle Bin for CIFS/SMB and AFP

Comprehensive Logs (Events & Connection)

Real-time Online User List

Syslog Client

Firmware Update with Live Update Notification

Backup and Restore System Settings

Restore to Factory Default

Applications

Web File Manager

Multimedia Station

Download Station

Surveillance Station

iTunes Server

Apache Web Server

MySQL Server

Mobile App

QMobile for iPhone/ iPad/ Android

3rd Party UPnP Media Player

QPKG

Web Applications

Joomla!

phpMyAdmin

WordPress

AjaXplorer

vtigerCRM

eyeOS

Magento

GLPI

P2P Applications

MLDonkey (eMule)

SABnzbd+

NZBGet

Server Applications

Asterisk

XDove (Mail Server)

OpenLDAP

Media Server

Squeezebox Server

IceStation

Misc.

Optware IPKG

Python

iStat

...and more

Powerful All-in-one server

File Server

File Sharing Across Windows, Mac OS and Linux/ Unix Platforms

Protocols: CIFS/SMB, AFP(3.1), NFS, FTP, HTTP, HTTPS

QNAP Web File Manager

Supports ISO Mounting

Direct File Viewing via Google Doc

FTP Server

FTP over SSL/TLS (Explicit)

Max Concurrent Connections: 256

FXP Supported

Passive FTP Port Range Control

FTP Bandwidth & Connection Control

Unicode Support

Web Server

HTTP/ HTTPS Connections

Supports WebDAV Connection

Supports Virtual Host

Importable SSL Certificate

Database Server

Built-in MySQL Server

Web-based Management via phpMyAdmin (QPKG)

Backup Server

Remote Replication Server (over Rsync)

Apple Time Machine Support

QNAP Client Backup Application-NetBak Replicator

3rd Party Backup Software Support: Acronis True Image, CA Brightstor, ARCserve Backup, EMC Retrospect, Symantec Backup Exec, LaCie Silverkeeper

iTunes Server

Audio and Video Sharing

Smart Playlist for iTunes Client (Windows & Mac OS)

UPnP Media Server

Built-in TwonkyMedia Server

Real-time & Background Photo Transcoding

Supports UPnP Media Player

Game Console: PlayStation 3, PSP and Xbox 360

Digital Media Adapter/Player

Mobile Device (e.g. iPhone, iPod touch with UPnP Applications)

Supported Formats:

ASF - Windows Media Video (Codecs: WMV video and WMA audio)

BMP - Bitmap Image

FLV, F1V, F4V - Standard Quality YouTube Video (Codec: Flash, Video: Sorenson Spark H.263 Video Codec & MP3 Audio Codec)

GIF - Graphics Interchange Format

JPG, JPEG, JPE - Joint Photographic Experts Group Image

MP3 - MPEG Audio Layer 3 (Codec: MPEG Audio)

MP4 - High Quality YouTube Video (Codecs: MP4: H.264 Video & HE-AAC audio)

MP4 - MPEG-4 Video (Codecs: Microsoft MPEG-4 v1, Microsoft MPEG-4 v2, Microsoft MPEG-4 v3 & ISO MPEG-4 v1)

MPEG, .MPG, .MLV - MPEG-1 (Codecs: MPEG-1 Video & MP2 Audio)

PNG - Portable Network Graphics

WAV - Linear Audio (Codecs: Uncompressed PCM-encoded & ADPCM-encoded)

Printer Server

Network Printer Sharing (USB)

Max Printers: 3

Supports Internet Printing Protocol

Supports Apple Bonjour Printing

Advanced Printer Management

Displays and Manages the Print Jobs

Access Right Control (IP & Domain Names)

Multimedia Station

Supports Photo, Audio and Video

Image Slide Show and Rotation

Automatic & Schedule Thumbnail Generation for Easy Browsing

Display Photo Details from EXIF: Date, Exposure Time, Aperture, etc.

Display Audio Details from ID3 Tag: Album Cover, Title, Artist, Album, etc.

Access Authority Management

Multimedia (Video & Audio) Streaming

Supports Cooliris

Supports Web Publishing (Facebook, MySpace, MSN Live, Twitter, Plurk, Blogger)

Supports E-mail Publishing

Supported Formats:

Photo - JPG/JPEG, GIF, PNG

Audio - MP3

Video

Playback: FLV, MPEG-4 Video (H.264 + AAC)

Transcode: AVI, M4V, MPG/MPEG, RM/RMVB, WMV

QNAP Exclusive iPhone & iPad App - QMobile

Download Station

PC-less BitTorrent/ FTP/ HTTP Download (up to 500 tasks)

BitTorrent Download

Supports TCP/ UDP Tracker Protocol

Schedule Download

Configurable Port Range

Bandwidth Control

UPnP NAT Port Forwarding

Subscribes to RSS Feeds

RSS Download (Broadcatching)

Selectable Download Files

HTTP/ FTP Download

Configurable Saving Directory

Bulk Download with Wildcard Setting

RapidShare Download Support

QNAP Download Management Software: QGet

For Both Windows & Mac OS

Manage the Download Tasks of Multiple QNAP NAS Remotely over LAN or WAN

Surveillance Station

Supports 4 IP Cameras (Optional Purchase) for Network Surveillance

Design and specifications are subject to change without notice.
