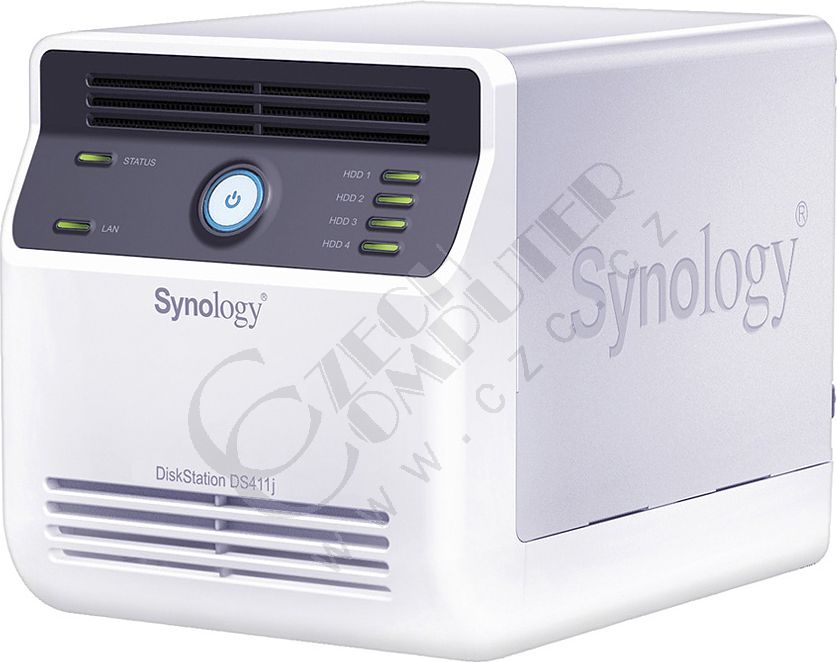

Synology DS411j

DS411j

Hardware

CPU Frequency : 1.2GHz

Hardware Encrypted Engine

Memory : DDR2 128MB

Internal HDD/SSD : 3.5" or 2.5" SATA(II) X4 (Hard drive not included)

Max Internal Capacity : 12TB (4X 3TB HDD) (Capacity may vary by RAID types) (See All Supported HDD)

External HDD Interface : USB 2.0 Port X 2

Size (HxWxD) : 184 X 168 X 230 mm3

Weight : 2.23Kg

LAN : Gigabit X1

System Fan : 80x80mm x2

Wireless Support

Noise Level : 21.7 dB(A)

Power Recovery

AC Input Power Voltage : 100V to 240V AC

Power Frequency : 50 / 60Hz, Single Phase

Power Consumption : 42.9W (Access) ; 16W (HDD Hibernation)

Operating Temperature : 5°C to 35°C (40°F to 95°F)

Storage Temperature : -10°C to 70°C (15°F to 155°F)

Relative Humidity : 5% to 95% RH

Maximum Operating Altitude : 10,000 feet

Certification : FCC Class B, CE Class B, BSMI Class B

Warranty : 2 Years

Notes :

Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in operation; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the DiskStation front and rear; Background noise: 17.2 dB(A); Temperature: 23.6˚C; Humidity: 58.2%; More details about dB(A) value, check http://www.memtechacoustical.com/facts.asp

Power consumption results are measured with 5 Seagate 750GB ST3750640NS hard drive.

Applications

File Browser

File Station

FTP Server

Bandwidth Control, Custom FTP Passive Port Range, Anonymous FTP, Transfer Log

Mail Server

Supported Mail Server Protocol : POP3, SMTP, IMAP

Web Station

Virtual Host (up to 30 websites)

PHP/MySQL

Alternative HTTP Error Page

3rd-Party Applications Support

Surveillance Station

MAX IP cam # (Licenses required) : 5 (1 Free License) (See All Supported IP Cameras)

Total Frames per Second (FPS) : 50 FPS @ D1 (NTSC：720x480, PAL：720x576), 10 FPS @ WXGA (1280x800)

Recording Modes : Manual, Continuous, Motion Detection, Alarm, Motion Detection and Alarm

Event Playback : Sync Mode (4 Channels), Time Slicing Mode

Centralized Management

Compression Formats : MJPEG, MPEG-4, H.264

Photo Station

Supported Image Format : BMP, JPG (jpe, jpeg), GIF, RAW (arw, srf, sr2, dcr, k25, kdc, cr2, crw, nef, mrw, ptx, pef, raf, 3fr, erf, mef, mos, orf, rw2, dng, x3f)

Supported Video Format : 3G2, 3GP, ASF, AVI, DAT, DivX, FLV, M4V, MOV, MP4, MPEG, MPG, QT, WMV, XviD, RM, RMVB, VOB, RV30, RV40, AC3, AMR, WMA3

User can click and download the following video formats: RM, RMVB, VOB, RV30, RV40, AC3, AMR, WMA3, but not able to play it in Photo Station as compressed Flash video.

Audio Station

Supported Audio Format (USB Mode) : AAC, FLAC, M4A, MP3, Ogg Vorbis, WMA, WMA VBR

Supported Audio Format (Streaming Mode) : MP3, M4A, M4B

Supported Playlist Format : M3U, WPL

Internet Radio : SHOUTcast, Radioio

DLNA/UPnP Media Server

PS3/Xbox 360 Support

Supported Audio Format : AAC, FLAC, M4A, MP3, Ogg Vorbis, PCM, WAV, WMA, WMA VBR, WMA PRO, WMA

Supported Video Format : 3GP, 3G2, ASF, AVI, DAT, DivX, DVR-MS, ISO, M2T, M2TS, M4V, MKV, MP4, MPEG1, MPEG2,MPEG4 , MTS, MOV, QT, SWF, TP, TRP, TS, VOB, WMV, XviD

Supported Image Format : BMP, JPG (jpe, jpeg), GIF, ICO, PNG, PSD, TIF (tiff), UFO

Supported Subtitles Format : srt, psb, smi, ass, ssa, sub, idx, ifo

Download Station

Supported Download Protocols : BT/HTTP/FTP/NZB/eMule

Custom BitTorrent Port Range

BitTorrent / eMule Bandwidth Control

iTunes Server

Supported Audio Format : MP3, M4A, M4P, WAV, AIF

Supported Video Format : M4V, MOV, MP4

Supported Playlist Format : M3U, WPL

Print Server

Max Printer # : 2

Printing Protocols : LPR, CIFS, AppleTalk, AirPrint, Multi Functional Print Server (Only PostScript USB printers are supported in MAC environment)

Synology Packages

Squeezebox Server

Mail Station

Webalizer

phpMyAdmin

Time Backup

iPhone/Android Applications

DS photo+

DS audio

DS cam

DS file (Only available on iPhone)

DS finder (Only available on iPhone)

Notes :

FPS tested with Axis M1011 (640X480) and Axis M1054 (1280X800); FPS set to 10 at every channel; Compression rate: 30%; Video Codec: MJPEG, MPEG4 (640X480 only), H.264; Recording Type is conducted with Motion Detection Recording and Continuous Recording; Various file transfer operations runs concurrently while streaming; Actual performance may vary depending on camera settings and DiskStation loading.

General

Networking Protocols

CIFS

AFP

NFS

FTP

WebDAV

iSCSI

Telnet

SSH

SNMP

File System

EXT4

EXT3

FAT (External Disk Only)

NTFS (External Disk Only)

Storage Management

Max Volume # : 256

Max iSCSI Target # : 10

Max iSCSI LUN # : 10

Supported RAID Type : Synology Hybrid RAID, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 5+Spare, RAID 6, RAID 10

RAID Migration : Basic to RAID 1, Basic to RAID 5, Basic to RAID 5+Spare, RAID 1 to RAID 5, RAID 1 to RAID 5+Spare, RAID 5 to RAID 5+Spare, RAID 5 to RAID 6

Volume Expansion with Larger HDDs : RAID 1, RAID 5, RAID 5+Spare, RAID 6

Volume Expansion by Adding a HDD : RAID 5

File Sharing Capability

Max User Accounts : 1024

Max Groups : 256

Max Shared Folder : 256

Max Concurrent Connections : 128

Windows Access Control List (ACL)

Windows ADS Domain Integration

Domain Users login via Samba/AFP/FTP/File Station

Backup Solutions

Network Backup

Local Backup

Desktop Backup (using Synology Data Replicator 3 or Apple Time Machine backup application)

Shared Folder Sync - Max task number : 2

Time Backup - Max task number : 2

Time Machine Backup (Mac)

Security

FTP over SSL/TLS

IP Auto-Block

Firewall

Encrypted Network Backup over Rsync

HTTPS Connection

Management

Auto DSM Upgrade

Administrator Group

Email Notification

SMS Notification

Customized User Quota

DDNS Support

IPv6 Support

PPPoE

Resource Monitor

UPS Management

Scheduled Power On/Off

Custom Management UI HTTP/HTTPS Ports

HDD Management

HDD Hibernation

S.M.A.R.T.

Dynamic Bad Sector Mapping

Utilities

Synology Assistant

Synology Data Replicator

Supported Clients

Windows 2000 onward

Mac OSX 10.3 onward

Ubuntu 9.04 onward

Supported Browsers

Chrome

Internet Explorer : 7, 8, 9

Firefox : 3.5, 3.6

Safari (MAC) : 4, 5

Supported Mobile Devices (Photo Station, File Station)

iPhone OS 2.2.1 onward

Android OS 1.5 onward

Windows Mobile (IE Mobile or Opera 9.0 onward)

Symbian OS 9.1, S60 3rd Edition onward

Language : Czech, Danish, Dutch, English, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese Brazil, Portuguese European, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish

Environment and Packaging

Environment

RoHS Compliant

Package Content

Main Unit X 1

Installation CD/DVD X 1

Welcome Note X 1

Assembling Kit X 1

AC Power Adapter X 1

AC Power Cord X 1

2M RJ-45 LAN Cable X 1

Optional Accessories

Remote

Camera License Pack

VS80

(Updated : 2011/05/30)
